Kubota Tractor Error Codes – List of Fault / DTC Codes

Kubota tractor error codes are alphanumeric codes generated by the onboard diagnostic system of Kubota tractors. These codes are designed to indicate specific issues or malfunctions within the tractor’s systems. When a fault is detected, the diagnostic system assigns a unique code to identify the problem. These error codes can vary depending on the specific model and configuration of the tractor, as well as the type of onboard diagnostic system installed.

Kubota Tractor M7 Instrument Cluster

Common types of errors include engine-related issues, transmission problems, hydraulic system malfunctions, electrical faults, and sensor failures. When an error code is displayed, it is essential to consult the tractor’s operator manual or contact a certified Kubota technician to diagnose and resolve the issue effectively.

List of Kubota Tractor Error Codes

These error codes provide valuable information about potential problems, symptoms, causes, and solutions related to the tractor’s performance.

Kubota Tractor Error Code P-0093

By understanding and interpreting these error codes, operators can troubleshoot effectively and ensure the proper functioning of their Kubota tractors.

Error Codes P-0016 – P-3025

Error Code Kubota Tractor Error Code Description
P-0016 Crankshaft position sensor (NE) – cylinder recognition sensor (G) phase gap
P-0072 Intake air temp. built-in MAF sensor abnormality: Low
P-0073 Intake air temp. built-in MAF sensor abnormality: High
P-0087 Pressure limiter opening abnormality
P-0088 High rail pressure abnormality
P-0089 SCV stuck
P-0093 Fuel leak (Leak in high pressure fuel circuit)
P-0101 Intake Air Volume: Low
P-0102 MAF Sensor Abnormality: Low
P-0103 MAF Sensor Abnormality: High
P-0112 Intake air temperature sensor abnormality
P-0113
P-0117 Coolant temperature sensor abnormality
P-0118
P-0182 Fuel temperature sensor abnormality
P-0183
P-0192 Rail pressure sensor abnormality
P-0193
P-0200 Overcharge
P-0201 TWV 1 actuation system open circuit
P-0202 TWV 2 actuation system open circuit
P-0203 TWV 3 actuation system open circuit
P-0204 TWV 4 actuation system open circuit
P-0217 Engine overheat. (Reduce work load. Check cooling system)
P-0219 Overrun
P-0237 Intake air pressure sensor abnormality
P-0238
P-0263 Non-injection abnormality (rotational fluctuation abnormality)
P-0266
P-0269
P-0272
P-0335 Crankshaft position sensor (NE sensor) abnormality
P-0336
P-0340 Cylinder Recognition Sensor (G sensor) abnormality
P-0341
P-0380 Air heater relay actuation abnormality (optional specifications)
P-0381 Glow heater relay driving circuit overheat
P-0400 EGR feedback abnormality
P-0403 EGR actuator open circuit
P-0404 EGR DC motor estimated temperature abnormality / EGR actuator coil short
P-0405 EGR lift sensor abnormality
P-0406
P-0409 EGR position sensor failure
P-0501 Vehicle speed sensor abnormality
P-0503
P-0524 Oil pressure error
P-0543 Exhaust gas temp. sensor 1 (T1) abnormality: Low
P-0544 Exhaust gas temp. sensor 1 (T1) abnormality: High
P-0546 Exhaust gas temp. sensor 0 (T0) abnormality: Low
P-0547 Exhaust gas temp. sensor 0 (T0) abnormality: High
P-0561 Battery voltage abnormality
P-0562
P-0563
P-0602 QR (IQA) data error / abnormality
P-0605 ECU Flash – ROM abnormality
P-0606 CPU abnormality
P-0611 Low charge
P-0616 Starter switch abnormality
P-0617
P-0627 Open Circuit of SCV
P-0628 SCV abnormality
P-0629
P-062B Injector Abnormality
P-062D Internal injector drive circuit short
P-0642 Sensor voltage 1 abnormality
P-0643
P-0652 Sensor voltage 2 abnormality
P-0653
P-0662 Sensor Supply Voltage 3 Abnormality
P-0687 Main relay abnormality
P-081A GND Short Circuit of Start Relay Driving Circuit
P-1274 Pump protection failure flag
P-1275 Pump replacement failure flag
P-1990 EEPROM check sum error
P-204F DEF/AdBlue® level is too low. (Check DEF/AdBlue® level. Check tank for leakage)
P-20F5 DEF/AdBlue® level is too low.
P-208B DEF/AdBlue® freeze warning. (Stop the engine once and restart it after 10 seconds. If the error code remains, contact your Kubota dealer)
P-2108 Intake throttle feedback error
P-2122 Accelerator position sensor 1 abnormality
P-2123
P-2127 Accelerator position sensor 2 abnormality
P-2128
P-2131 Accelerator Position Sensor Error (CAN)
P-2135 Accelerator position sensor correlation error
P-2146 Common 1 system open circuit
P-2147 Common 1 TWV actuation system ground short
P-2148 Common 1 TWV actuation system +B short
P-2149 Common 2 system open circuit
P-2151 No.2 & 3 cylinder injector short to +B
P-2227 Atmospheric pressure sensor abnormality
P-2228 Atmospheric pressure sensor abnormality
P-2229 Atmospheric pressure sensor abnormality
P-2293 Rail pressure sensor abnormality after pressure limiter open
P-2413 EGR actuator valve stuck
P-2414 EGR (DC motor) Overheat
P-2415 EGR (DC motor) temp. sensor failure
P-242C Exhaust Gas Temp. Sensor 2 (T2) Abnormality: Low
P-242D Exhaust Gas Temp. Sensor 2 (T2) Abnormality: High
P-2454 Differential Pressure Sensor 1 Abnormality: Low
P-2455 Differential Pressure Sensor 1 Abnormality: High
P-2621 Intake Throttle Lift Sensor Abnormality: Low
P-2622 Intake Throttle Lift Sensor Abnormality: High
P-3001 Emission deterioration
P-3002 Exhaust Gas Tempe. Sensor 0 Emergency High
P-3003 Exhaust Gas Tempe. Sensor 1 Emergency High
P-3004 Exhaust Gas Tempe. Sensor 2 Emergency High
P-3006 Excessive PM3
P-3007 Excessive PM4
P-3008 Excessive PM5
P-3011 Boost pressure low
P-3012 Low Coolant Temp. in Parked Regeneration
P-3013 Parked regeneration time out
P-3018 All Exhaust Gas Temp. Sensor Failure
P-3023 High exhaust gas temperature after emergency high temperature
P-3024 High frequency of regeneration
P-3025 Over heat pre-caution

Kubota Tractor Error Code P-0563

Error Codes U-0075 – U-0089

Error Code Kubota Tractor Error Code Description
U-0075 CAN2 Bus off
U-0076 No Communication with EGR (523578-2)
U-0077 CAN1 Bus off
U-0081 CAN-KBT Frame error
U-0082 CAN CCVS frame error
U-0083 CAN CM1 frame error
U-0086 CAN ETC5 frame error
U-0087 CAN TSC1 frame error
U-0089 CAN EBC1 frame error

Error Codes E-00 – E-99

Error Code Kubota Tractor Error Code Description
E-00 IntelliPanel’s memory device is in trouble
E-1 Acceleration sensor (main) trouble
E-2 Acceleration sensor (sub) trouble
E-3 Acceleration sensor main/sub phase shifting trouble
E-4 Shuttle sensor (main) trouble
E-5 Shuttle sensor (sub) trouble
E-6 Shuttle sensor main/sub phase shifting trouble
E-7 Shuttle sensor signal trouble
E-8 Gear lock signal trouble
E-11 PTO relay trouble
E-12 4WD solenoid trouble
E-13 Bi-speed turn solenoid trouble
E-14 Shuttle forward solenoid trouble
E-15 Shuttle forward solenoid trouble
E-17 Differential lock solenoid valve trouble
E-20 Communication error between ECU and electronic instrument panel
E-21 Range gear shift (Hi) switch trouble
E-22 Main gear shift (6th) switch trouble
E-23 Shuttle rotating sensor trouble
E-24 Machine speed sensor trouble
E-25 DPF regeneration malfunction trouble
E-30 ECU memory device is in trouble
E-31 Part code of meter and ECU model setting not compatible
E-40 Input voltage of lever sensor from ECU is in trouble
E-41 Engine communication trouble
E-42 ACU communication trouble
E-43 ECU communication trouble or meter communication trouble
E-50 GST lever sensor is in trouble
E-60 Proportional reducing valve failure
E-61 Solenoid 1 is in trouble
E-62 Solenoid 2 is in trouble
E-63 Solenoid 3 failure
E-64 Solenoid 4 failure
E-65 Solenoid 5 failure
E-66 Solenoid 6 failure
E-75 Acceleration sensor output out of spec
E-84 Acceleration sensor maladjusted
E-93 Relay for engine-starter-motor is in trouble
E-94 Relay for engine-shut-off is in trouble
E-95 Solenoid (PTO) is in trouble
E-99 Communication trouble
ERROR-NET Communication trouble
ENG NG Engine communication trouble
ECU NG ECU communication trouble

Kubota Tractor Error Code ECU NG

Error Codes E-R20 – E-R55

Error Code Kubota Tractor Error Code Description
E-R20 Trouble with the output voltage of the clutch pedal sensor. A Clutch pedal sensor trouble / [C and 1 to 8] and shift lock switch trouble occur at the same time.
E-R31 Trouble with the relevant solenoid valve. A Proportional solenoid valve (range shift L/H) trouble
E-R32
E-R33
E-R34
E-R35
E-R36
E-R37 Proportional solenoid valve (master) trouble.
E-R38 Shifting is performed using the shift buttons. A Hydraulic switch trouble. A Main spool trouble
E-R39
E-R40
E-R41
E-R42
E-R43
E-R44 Started by operation of the shift buttons, shuttle lever, and clutch pedal. A Trouble with master clutch hydraulic switch trouble. A Low system hydraulic pressure.
E-R45 Trouble with a hydraulic switch that is not related to the flashing gear speed. A Hydraulic switch trouble. A Main spool trouble
E-R46
E-R47
E-R48
E-R49
E-R 50
E-R51 Clutch is operated. A Hydraulic switch (master) trouble. A Proportional solenoid valve (master) trouble. [L and 1 to 8] and shift lock switch trouble occur at the same time.
E-R52 Trouble with a hydraulic switch that is not related to the flashing gear speed. A Hydraulic switch trouble. A Main spool trouble
E-R53
E-R54
E-R55

Kubota Tractor Error Code E-R38

Can I Reset my Kubota Tractor Error Myself?

Yes, you can reset your Kubota tractor error codes yourself by following specific procedures outlined for your tractor model. The process may involve pressing buttons in a specific pattern, troubleshooting through the menu, or following a set of instructions provided in the tractor’s manual. While it is possible to reset the error codes independently, it is always recommended to consult with a professional Kubota customer service team, especially if you encounter persistent issues or are unsure about the process.

Kubota M5 Tractor P-203F Error

Resetting Kubota tractor errors may vary depending on the specific error code and the model of the tractor. In some cases, simple issues can be resolved by turning off the tractor, waiting for a few minutes, and then restarting it. However, for more complex errors or persistent issues, it’s recommended to consult the tractor’s user manual or contact a qualified Kubota service technician for assistance.

Kubota Tractor Error Codes - List of Fault DTCs

Attempting to reset errors without proper knowledge or training may inadvertently cause further damage to the tractor or compromise its safety and performance.

How to Reset Errors on Kubota Tractor

When the Kubota tractor instrumental panel detects something wrong, the master system warning indicator (1) starts blinking and the error code indicating the location of the trouble. Showed in below is displayed on the LCD.

How to Reset Errors on Kubota L Series Tractor

Mode “A” (Test Mode)

  1. While holding down both DPF INHIBIT switch and parked regeneration switch, turn the key switch to “ON” or “START” position.
  2. Mode selection display is indicated on the Kubota LCD.
  3. Press the parked regeneration switch and the mode indicated on the LCD is changed.
  4. If “A” is indicated on the LCD, press the parked regeneration switch for more than 2 seconds.
  5. Kubota tractor test mode is selected.
  6. If parked regeneration switch is pressed, the display item is changed.
  7. Turn off the tractor key switch to finish test mode.

How to Reset Error on Kubota Tractor

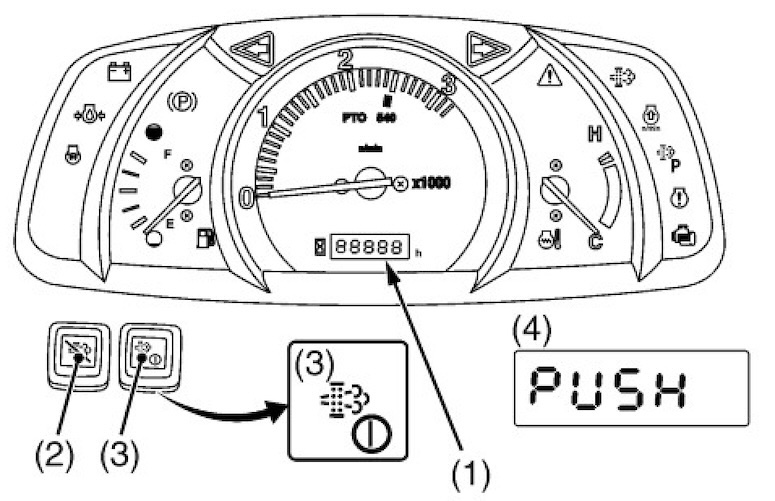

Mode “B” (Error Information Clear Mode)

  1. While holding down both DPF INHIBT switch and the parked regeneration switch, turn key switch “ON” or “START” position.
  2. Mode selection display is indicated on the Kubota dash LCD display.
  3. Press the parked regeneration switch and the mode indication on the LCD is changed.
  4. If “B” is indicated on the LCD, press the parked regeneration switch for more than 2 seconds.
  5. Error information Clear mode is selected and the expression “PUSH” is displayed.
  6. Press the parked regeneration switch for more than 2 seconds.
  7. The expression “OFF” is displayed.
  8. Turn off the tractor key switch.

Be sure to clear Kubota tractor error information by performing this procedure after servicing is finished.

What is a Kubota Tractor Regeneration Process?

Watch this helpful video about operation tips for when your tractor signals that the regeneration process is underway.

Kubota’s Automatic Regeneration System effectively eliminates accumulated soot within the DPF muffler, ensuring its cleanliness and enabling extended working hours.

As a safety measure, the automatic regeneration feature can be deactivated in fire-prone environments. Nevertheless, if the operator disables the regeneration process more than three times, the Kubota engine will activate auto-regen mode autonomously.

Most common Kubota Tractor Error Codes

These error codes can be caused by various issues, such as wiring problems, sensor failures, or ECU malfunctions. It is recommended to consult the tractor’s manual or contact a Kubota dealer for troubleshooting steps and possible solutions:

  • E-20: Communication trouble – This error code is associated with a communication problem between the tractor’s electronic control unit (ECU) and other components. It may be caused by a broken electrical connector, a blown fuse, or a malfunctioning sensor.
  • E-21: Range gear shift (Hi) switch trouble – This error code indicates a problem with the range gear shift (Hi) switch. It may be caused by a malfunctioning switch or a wiring issue.
  • E-60: Proportional reducing valve failure – problem with the hydraulic system, specifically with the reducing valve, which controls the hydraulic pressure to the implement.
  • E-94: Relay for engine-shut-off is in trouble – This error code indicates a problem with the relay for engine-shut-off. It may be caused by a faulty relay or a wiring issue.
  • P-0087: Pressure limiter opening abnormality – This error code is associated with a problem with the pressure limiter. It may be caused by a faulty pressure limiter or a wiring issue.
  • P-0088: High rail pressure abnormality – This error code is associated with a problem with the rail pressure. It may be caused by a faulty pressure sensor or a wiring issue.
  • P-0088: High rail pressure abnormality – This error code is associated with a problem with the rail pressure. It may be caused by a faulty pressure sensor or a wiring issue.
  • P-0563: Battery voltage abnormality (High) – Open circuit, short circuit or damage of harness. Failure of battery. Poor starting. Insufficient output. Deterioration of emission performance.
  • P-0093: Fuel Leak (in High Pressured Fuel System) – Fuel leakage from high-pressure fuel system (when excessive fuel consumption is detected by calculating the difference in the rail pressure before and after fuel injection). Insufficient output. Deterioration of emission performance. * Engine stopped.

These Kubota DTC error codes cover a range of potential issues related to engine temperature, fuel system, and sensor malfunctions. Proper diagnosis and repair are essential to address these problems effectively.

Whate is Kubota SPN Error / FMI Error code?

Kubota SPN (Source Physical Number) and FMI (Fault Mode Identifier) error codes are used in the J1939 diagnostic protocol to identify specific faults in the tractor’s systems. These codes are part of the SAE J1939 diagnostic protocol used in modern vehicles and machinery to communicate faults and malfunctions.

  • SPN (Suspect Parameter Number): This is a numeric value assigned to specific parameters or signals within the vehicle’s electronic systems. Each SPN corresponds to a particular aspect of the vehicle’s operation, such as engine speed, coolant temperature, or hydraulic pressure. When a fault or malfunction occurs, the SPN helps identify which parameter is affected.
  • FMI (Failure Mode Identifier): This is a numeric value that provides additional information about the nature of the fault or malfunction associated with a particular SPN. The FMI describes the type of failure or the condition that triggered the diagnostic trouble code (DTC). It helps technicians understand whether the fault is intermittent, a short circuit, an open circuit, or another specific failure mode.

Together, SPN and FMI codes help technicians diagnose and troubleshoot issues with Kubota tractors and other equipment by providing specific information about the nature and location of faults within the vehicle’s electronic systems. These codes are typically accessed using diagnostic tools connected to the vehicle’s onboard diagnostic port.
